Coring Concrete Structures with a Shibuya Core Drill

Making holes in concrete using a Shibuya core drill is an efficient and precise method, ideal for applications like installing plumbing, electrical conduits, or creating ventilation holes in concrete structures. Shibuya core drills are known for their power, durability, and precision, making them a popular choice for both contractors and DIYers when dealing with concrete drilling tasks.

Here’s a step-by-step guide on how to use a Shibuya core drill to create holes in concrete:

Steps for Concrete Hole Making Using a Shibuya Core Drill

1. Preparation and Safety First:

• Wear Proper Personal Protective Equipment (PPE):

  • Safety goggles to protect your eyes from flying debris.

  • Hearing protection to reduce the noise from the drill.

  • Work gloves to protect your hands from vibrations and sharp debris.

  • Dust mask or respirator, especially if drilling into reinforced concrete, as this can generate fine dust.

  • Safety boots to protect your feet from falling debris or equipment.

• Clear the Area: Remove any obstacles or debris around the area where you'll be drilling. Ensure there are no obstructions that might interfere with the drilling process.

• Mark the Hole Location: Mark the center of the hole on the concrete surface using a chalk line, pencil, or marker. Ensure you’ve measured accurately for precise placement.

2. Set Up the Shibuya Core Drill:

• Select the Correct Drill Bit: Choose the appropriate core drill bit for your project. Shibuya drills are compatible with various diamond-tipped bits, so make sure the bit is suitable for concrete and the desired hole diameter.

• Attach the Core Drill Bit: Securely attach the chosen diamond core bit to the drill’s spindle. Make sure it's tightly fastened to avoid wobbling or slipping during drilling.

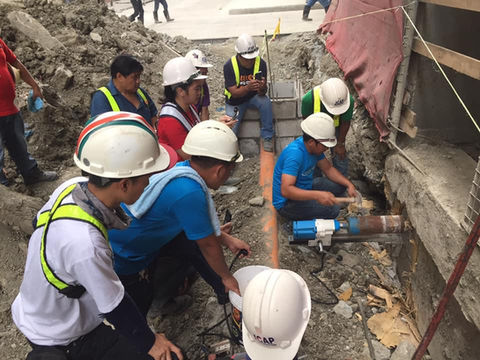

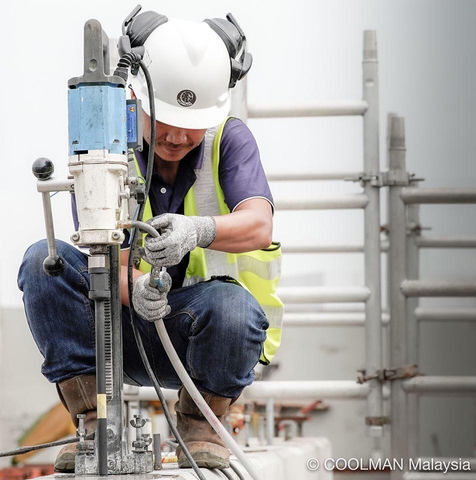

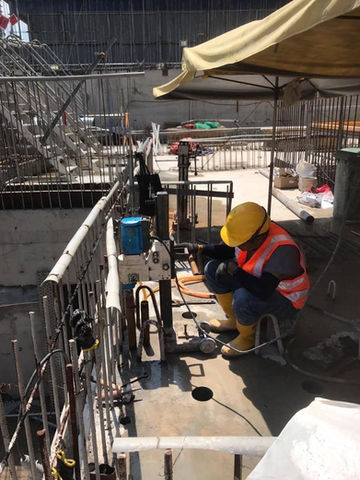

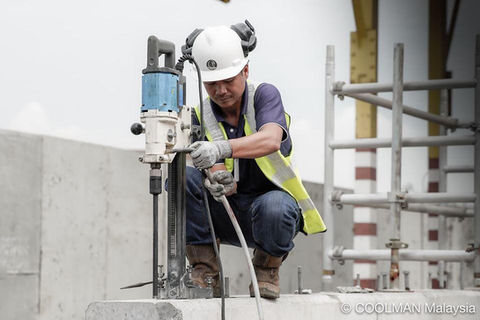

• Position the Drill: Place the Shibuya core drill at the marked location. Depending on your model, you may need to either manually hold the drill or mount it on a stand. For vertical or overhead holes, it’s especially important to secure the drill.

3. Set Up the Water Supply:

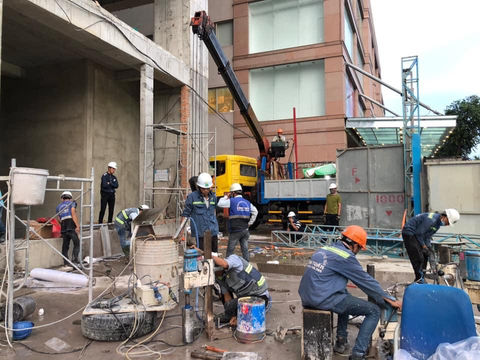

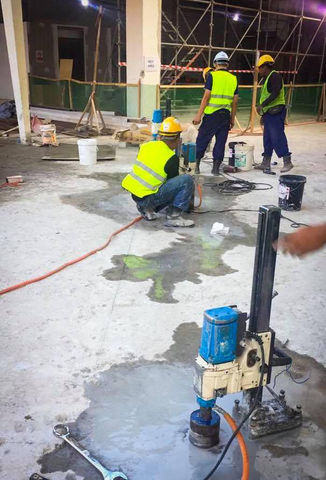

• Water Cooling: Core drilling generates heat, so most Shibuya core drills require a constant water supply to cool the bit and reduce dust. Attach the water feed system to the drill, ensuring it is working properly and that water will flow consistently over the drill bit.

• Adjust the Flow: Set the water flow to an appropriate level — enough to cool the bit and carry away debris but not so much that it makes a mess.

4. Drill the Hole:

• Start Drilling Slowly: Begin the drilling process at a low speed to ensure the bit is properly aligned with the hole's center. Gently apply pressure without forcing the drill. This helps prevent damaging the core bit or the concrete.

• Increase Speed: Once the bit has started to penetrate the surface, gradually increase the drilling speed. Keep steady, even pressure to avoid unnecessary wear on the bit.

• Monitor the Process: Regularly check for signs of overheating or excessive vibration. If you notice these, reduce pressure or speed, and make sure the water supply is sufficient. For reinforced concrete, the drill may struggle when hitting steel rebar, so take care when encountering these areas.

5. Core Removal:

• Pause Periodically: If you’re drilling deep holes, pause occasionally to allow the bit to cool down and clear out any debris.

• Finish Drilling: Once the core is fully drilled, slowly withdraw the drill from the hole. This will prevent the core bit from getting stuck or bound in the hole.

• Extract the Core: After the drill is removed, the concrete core will remain in the bit. Use a hammer or other tool to gently tap the core out of the bit. Depending on the size of the hole, you may need to use a core retrieval tool or manually remove the core.

6. Clean Up the Hole:

• Clear Debris: Once the hole is complete, clean the hole of any loose debris. You can use compressed air or a vacuum to remove dust and leftover concrete particles.

• Inspect the Hole: Ensure the hole is to the correct depth and diameter. If necessary, use a hand tool to smooth the edges or widen the hole slightly.

7. Post-Drilling Care:

• Shut Off the Water: Turn off the water supply to the core drill.

• Clean the Equipment: After each use, clean the Shibuya core drill and bits to extend their lifespan. Check the core bit for wear and replace it if necessary.

• Store Equipment Properly: Store the drill and accessories in a safe, dry place to avoid damage.


Additional Tips for Efficient Concrete Drilling:

• Use Proper Pressure: Applying too much pressure can damage the core bit or slow the process, while too little pressure may reduce efficiency.

• Monitor the Core Bit: If the core bit begins to overheat, stop drilling and allow it to cool. Consistent water flow is crucial to keep the bit cool and extend its life.

• Be Aware of Reinforcement: If you hit rebar or reinforcement, slow down to avoid damaging the drill bit. In some cases, you might need to switch to a different bit designed for cutting through metal reinforcement.


Benefits of Using a Shibuya Core Drill:

• Precision: Shibuya core drills offer high precision for creating accurate, clean holes in concrete.

• Minimal Dust: The water cooling system minimizes dust, making the drilling process cleaner and safer.

• Efficiency: The high-performance diamond-tipped bits are highly effective and durable, allowing for faster and more consistent results.


Using a Shibuya core drill for making holes in concrete provides you with a reliable and efficient method for drilling through even the toughest concrete surfaces. Let me know if you have specific questions about drill setup or need additional tips for your project!
